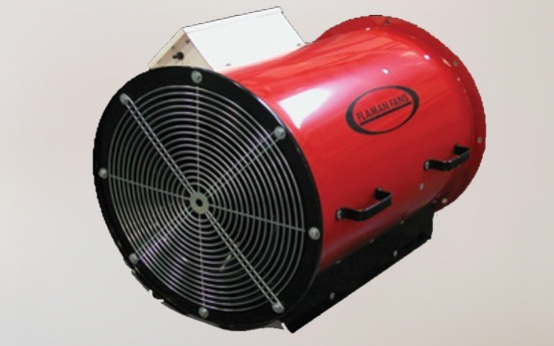

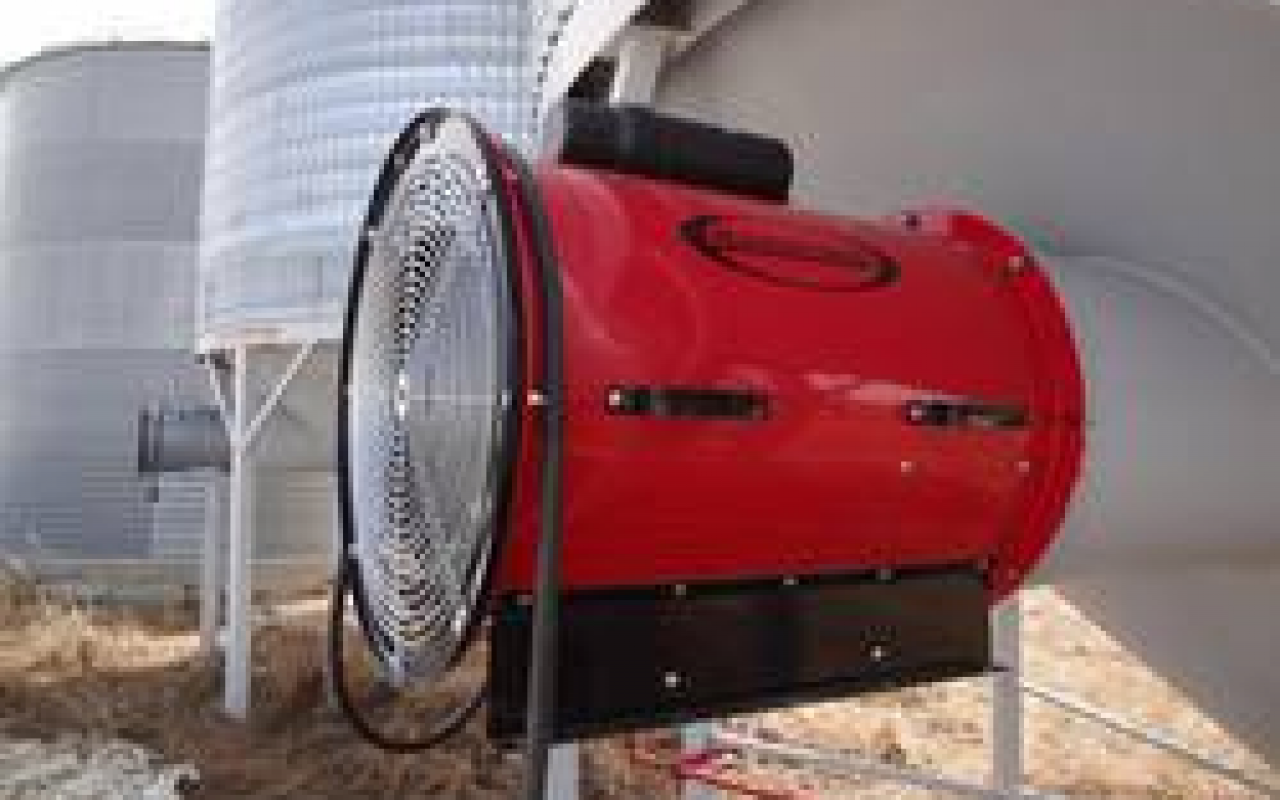

The Grain Gaurd In-Line Flaman Centrifugal Aeration Fan features a Compact design, quiet performance and ensures superior grain drying.
It is designed to perform in medium static pressure applications and to interface with new low-temperature heaters. Centrifugal fans feature a steel constructed air-foil rotor, an aerodynamically designed inlet cone, and a heavy duty air-over cooled motor to give you maximum drying power.
Contact Us Quote Request Similar Inventory
Extra Information
Features:
- Available in 3, 5, 7 and 10 hp sizes
- 18", 24", and 28" diameter openings

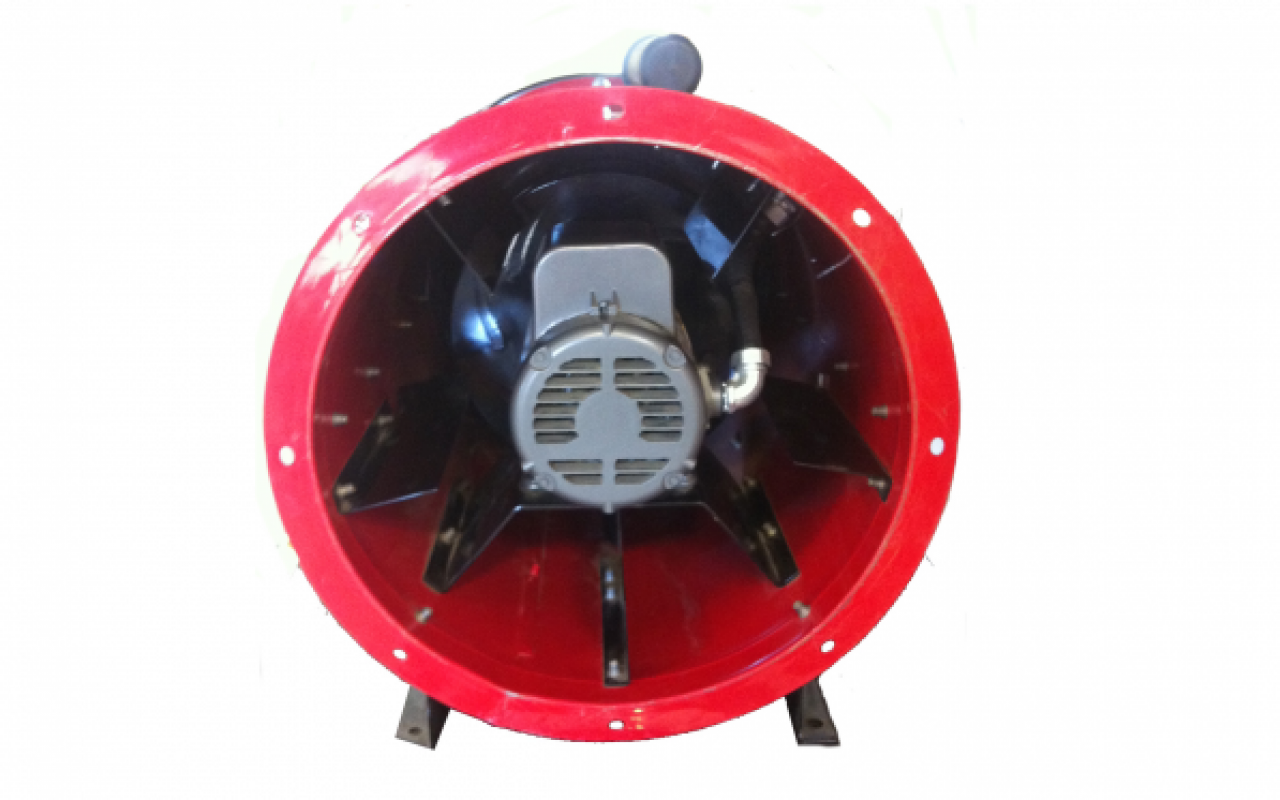

- Steel constructed air-foil rotor
- Aerodynamically designed inlet cone
- Weatherproof electrical controls
- Heavy-duty air-over cooled motor
- 3450 rpm
View Specs for All 4 Models Available » Specs
HP | 3 | -- |
Outlet | 18" | -- |
Amps | 17 | -- |
Phase | single or three phase available | -- |
Weight | 175 lbs | -- |
- HP
- Outlet
- Amps
- Phase
- Weight
-
3hp
- 3
- 18"
- 17
- single or three phase available
- 175 lbs
-
5hp
- 5
- 24"
- 30
- single or three phase available
- 265 lbs
-
7hp
- 7
- 24"
- 40
- single or three phase available
- 275 lbs
-
10hp
- 10
- 28"
- 55
- single or three phase available
- 350 lbs
